NUEVO

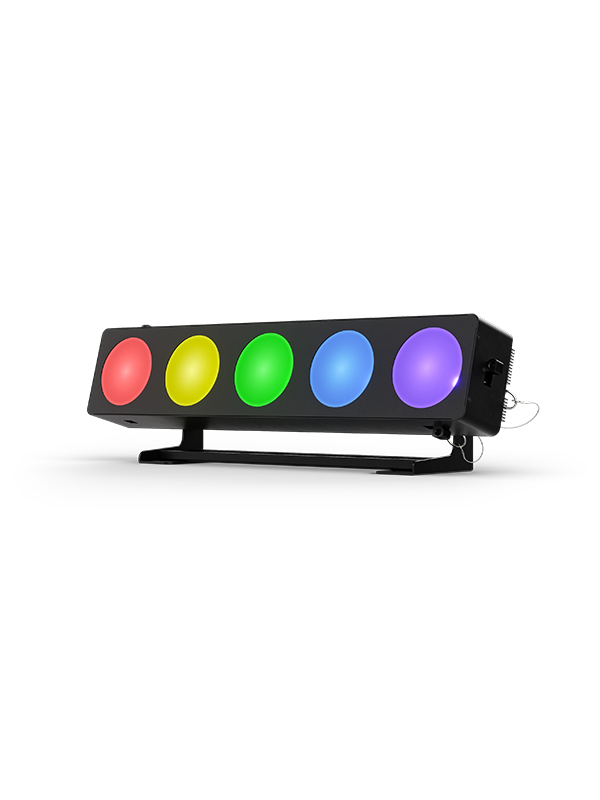

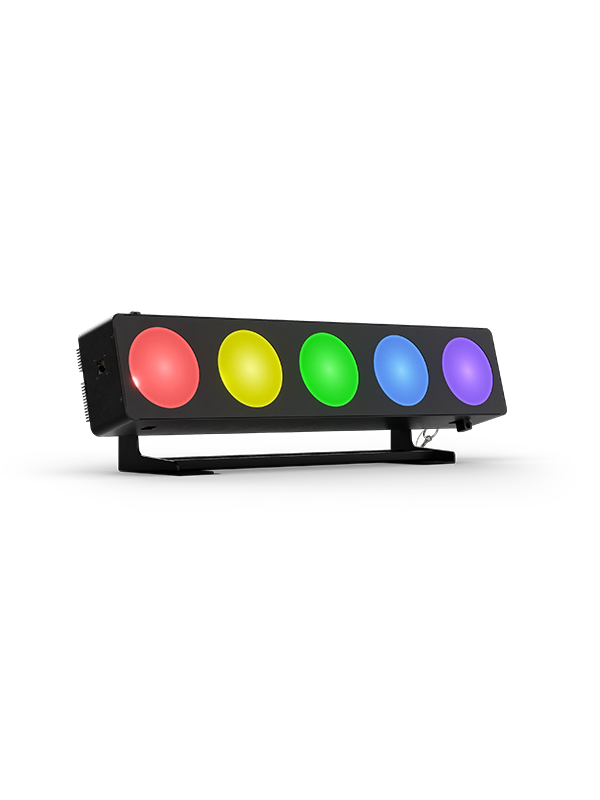

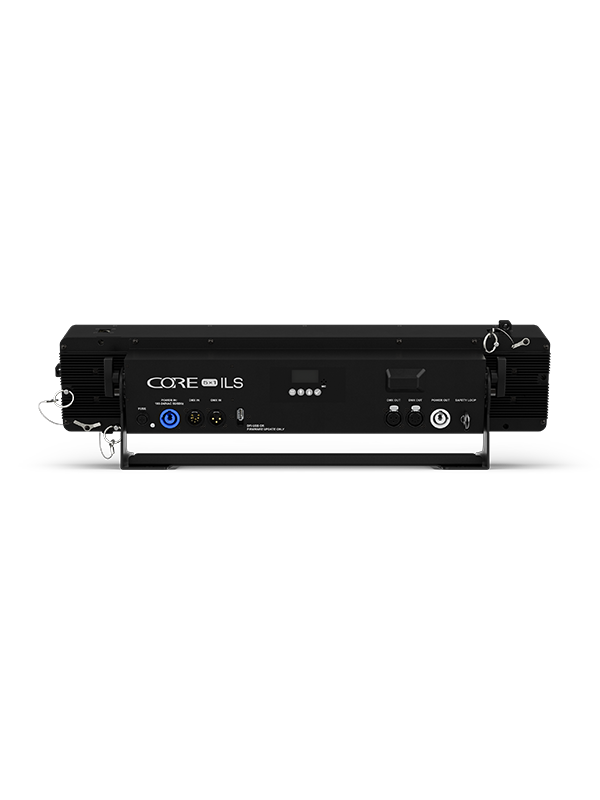

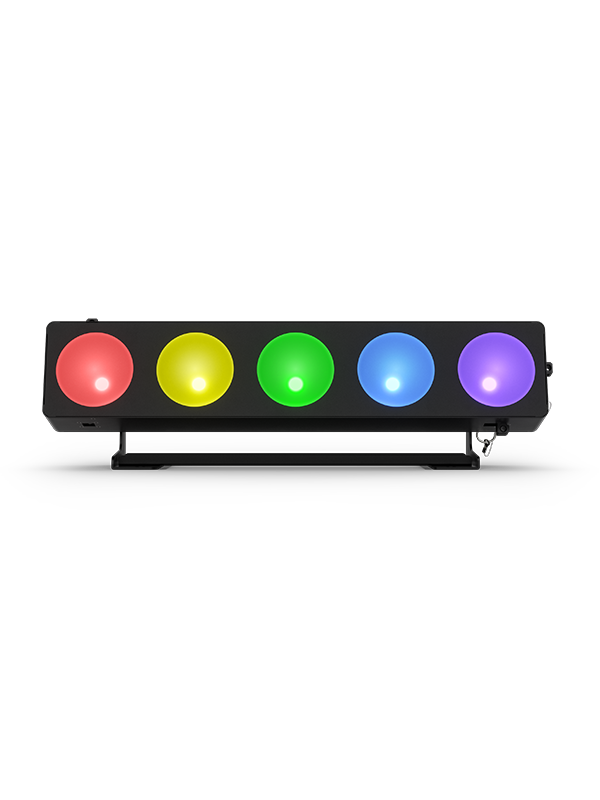

Core 5X1 ILS

Core 5×1 ILS projects smoothly saturated color with COB technology and a large reflector design ideal for bringing the most natural color tones to live setups. Create custom shapes with built-in tool-free connecting hardware. Add a D-Fi™ USB (sold separately) to wirelessly sync Core 5×1 ILS with multiple ILS fixtures of different types. Floor mount for a perfect uplight or attach multiple fixtures together for high-impact pixel-mapped looks, runway chase effects, blinder bursts or color washes.

Especificaciones

  • Canales DMX:4, 8, or 22
  • Conectores DMX:3- and 5-pin XLR
  • Fuente de iluminación:5 LEDs (quad-color RGB+WW) 35W, (1.2A) 50,000 hours life expectancy
  • Frecuencia de :0 to 20 Hz
  • Ángulo del haz:54°
  • Ángulo de campo:75°
  • Iluminancia:953 lux @ 2 m
  • Alimentación en cadena:6 units @ 120 V; 10 units @ 230 V
  • Entrada de voltaje:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Potencia/corriente:120 W, 1.8 A @ 120 V, 60 Hz
  • Peso:11 lbs (5 kg)
  • Tamaño:23.6 x 3.1 x 4.7 in (600 x 79 x 120 mm)
  • Certificaciones:CE, RoHS
  • Cable Length: 5 ft (1.52 m)
  • Bracket Mounting Hole: 13 mm
  • Optional Controllers: ILS Command, RFC, RFC-XL

Lo que incluye

  • Core 5X1 ILS
  • CORE 5X1 ILS
  • Power cord
  • Quick Reference Guide
